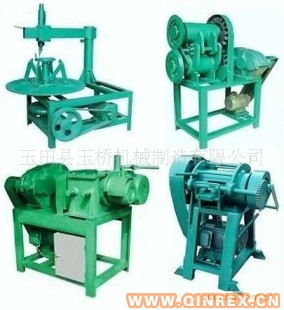

廢舊輪胎膠粉設備-切條機Strip Cutter

(一)設備用途：.該機主要用于將廢舊輪胎的胎冠及胎側切割成一定寬度的橡膠長條。

(二)結構與原理：

該機由一對刀片、減速機、機架和傳動機構等組成。其基本原理為：由減速機經轉動機構，帶動二刀片做相對勻速運轉，促使二刀片形成剪切之勢，將物料置于兩刀片之間，向前移動，以達到剪切效果。

(三)特點：

兩個園盤刀采用特殊金屬熱處理制成,堅硬耐用，可多次修磨使用。

Application: It is utilized in cutting the crown and side-wall of waste tire into a certain sized oflongrubber strip.

Construction and Principle:

The unit is consist of a pair of knife, Speed reducer, frame and transmission.The principle is that Speed reducer through transmission, driving two knives constant speed operation and making two knives constitute a trend of shear, the material placed between the two knives, move forward to achieve the shear effect.

Characteristic:

Disc knife is made using a special metal heat treatment,high hard and wearable ,is durable.

(四)主要技術參數Main Technical Parameters

外型尺寸(長寬高)(mm) Dimension(LWH)(mm)12507001500

生產效率（kg/h）Production efficiency（kg/h） 1000

電機功率（KW）Motor power(KW)4

電機轉速(r/min) Motor rotating speed（r/min）1440

電壓（V）Voltage(V) 380

頻率（HZ）Frequency(HZ)50

減速機型號Speed ReducerModel350

減速比Reduction radio31.5

出料尺寸Size of discharged materials(mm) 20~40

設備重量 Machine weight(kg)720

（五）服務：售后服務周到細致，耐心熱情，協助運輸。

（六）聯系方式：

地址：河北省唐山市玉田縣張莊子工業區

電話：0315-6396162，

傳真：0315-6551655

網址：www.yuqiaojixie.com.cn

郵箱：tsyuqiaoo@163.com

QQ：1016533486

MSN：tsyuqiaoo@hotmail.com

Contact:

1.Address:ZhangZhuangZi industrial district ,YuTian ,TangShan City,HeBei province,China

2.Tel：086-0315-6396162

3.Fax：086-0315-6551655

4. Postcode:064102

5.http：//www.yuqiaojixie.com.cn

6.E-mail：tsyuqiaoo@163.com

7.QQ：1016533486

8.MSN：tsyuqiaoo@hotmail.com
